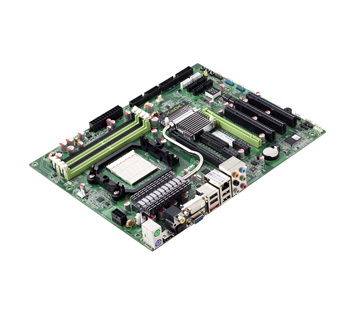

XFX nForce 750a ver 1.0
- 2-way SLI graphics support
- NVIDIA HybridPowerT Technology
- GeForce BoostT Technology
- PCI Express 2.0
- NVIDIA SLI-Ready
- NVIDIA Control Panel utility
- NVIDIA MediaShieldT
- 6 SATA 3Gb/sec. ports
- Gigabit Ethernet port
- Supports all Socket AM2+ CPU's up to 95W
- Onboard GeForce 8200 graphics
- HDCP Ready
- HDMI Certified
- Up to 256 MB DDR2 Memory (video)
- HDMI + DVI + VGA outputs
- NVIDIA CineFXT 3.0 Engine
- NVIDIA nViewT Multi-Display Technology
- DirectX 10 Support
- NVIDIA PureVideo HD Support
SPECIFICATIONS:
| Socket | AM2+/AM2 |
| Chipset Type | NVIDIA nForce 750a SLI |
| Compatible Processors | Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 (CPU's up to 95W) |
| Bus Speed | 2600MHz Hyper Transport (5200 MT/s) |
| Storage | PATA: 1 x ATA100 2 Dev. Max SATA 3Gb/s: 6 SATA RAID: 0/1/0+1/5 |
| Memory | Number of Memory Slots: 4 x 240pin Memory Standard: DDR2 1066 Maximum Memory Supported: 8GB Channel Supported: Dual Channel |
| Graphics Controller | GeForce Graphics 8200 |
| Audio | 8 channels |
| Networking | 10/100/1000Mbps |
| Expansion Slots |
PCI Express x16: 2 PCI Express x1: 2 PCI Slots: 3 |
| Rear Panel Ports | PS/2: 2 Video Ports: D-Sub + DVI HDMI: 1 x HDMI USB 1.1/2.0: 4 x USB 2.0 eSATA: 1 x eSATA 3Gb/s S/PDIF Out: 1 x Optical, 1 x Coaxial Audio Ports: 6 Ports |
| Onboard USB | 6 x USB 2.0 |
| Form factor | ATX, 11.9" x 9.7" |
Package Includes:
ATX Motherboard, SATA cable, IDE cable, I/O Shield, Drivers CD and Quick Installation Guide..
