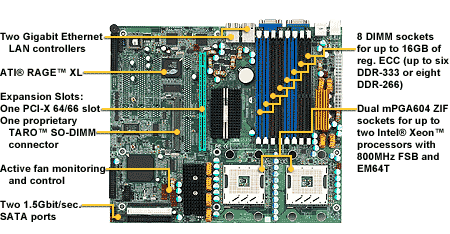

Tyan Tiger i7320 (S5350), S5350G2NR-1U Intel Socket 604 Dual Xeon 1U
General Features:
- Intel E7320 Server chipset
- 1U form factor
- Supports Dual Xeon Socket 604 processors
- 800 MHz Front Side Bus
- Supports up to 32 GB DDR 266/333 RAM
- Dual channel memory bus
- ATI Rage XL PCI graphics accelerator w/8 MB Frame buffer of video memory
- Two (2) SATA/150 with support for RAID 0,1
- Two (2) Gigabit Ethernet (Broadcom BCM5721 PCI Express & Broadcom BCM5705 PCI GBe LAN)
- Two (2) UDMA33/66/100 IDE controllers
- One (1) floppy controller
- SODIMM socket
Expansion Slots:
- One (1) 64-bit 66 MHz PCI-X slot
- Eight (8) 184-pin DDR DIMM sockets
I/O Ports:- Two (2) PS/2 ports
- One (1) 9-pin serial port
- One (1) 15-pin VGA port
- Two (2) Gigabit Ethernet ports
- Two (2) USB 2.0 ports
BIOS Features:
- Phoenix BIOS 8 Mbit Flash
- Supports APM 1.2 & ACPI 1.0
- PnP, DMI2.0, WfM2.0 power management
System Management:
- SMSC DME1737 and EMC6D102 w/hardware monitoring
- Two (2) 3+1 pin CPU fan headers w/tachometer input and programmable temperature sensing fan speed control
- Seven (7) 3-pin fan headers, 5 w/tachometer input and programmable temperature sensing fan speed control
- Temperature, voltage, and fan monitoring
- Watchdog timer
Supported Processors:
- Supports up to two Intel Xeon processors
- 800 MHz Front Side Bus
- Socket 604
Package Includes:
- Tyan Tiger i7320 9S5350) Intel E7320 Dual Xeon Socket 604 ATX Motherboard
- Two (2) Socket 604 mounting brackets
- I/O shield
|
|
