$89.95

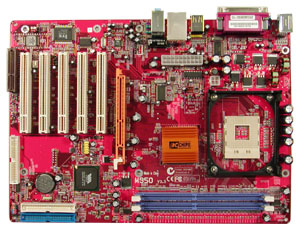

PC CHIPS M950HLU

Supported Processors:
* Socket 478 supports Intel Pentium 4 series processor with/without Hyper Threading Technology, 533/400 MHz FSB.

Chipset:
* North Bridge: VIA P4X400
* South Bridge: VIA VT8235

FSB:
* 533/400 MHz

Main Memory:
* 2 x 184-pin DDR DIMM socket support up to 2 GB.
* Support DDR 266/333 MHz 2.5V DDR SDRAM

Expansion Slots:
* 1 x AGP 8X slot
* 5 x PCI slots
* 1 x CNR slot

Storage:
* Supports Dual Channel Ultra DMA133/100/66/33 devices.

Audio:
* Audio Codec conforms with AC'97 2.1 specification

LAN:
* 10/100 Mbps Fast Ethernet PHY

BIOS:
* AMI 2Mb Firmware Hub
*Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
*Support ACPI revision 1.0 specification

Rear Panel I/O:
* 1 x PS/2 keyboard & PS/2 mouse connectors
* 4 x USB2.0 Ports
* 1 x RJ45 LAN connector
* 1 x EPP/ECP mode Parallel port (LPT1)
* 1 x 16550 high-speed Serial ports (COM1)
* 1 x Audio ports (Line-in, Line-out, Mic-in)

Internal I/O Connectors and Headers:
* Supports Plug and Play function
* 1 x 20-pin & 1 x 4-pin ATX Power Supply Connector
* 1 x Floppy connector supports 360K~2.88M Bytes
* 2 x IDE connectors - support four IDE devices
* 1 x CD-in header
* 2 x USB 2.0 header support additional 2 USB ports
* 1 x Front panel switch/LED header
* 1 x LAN wake up connector
* CPU Fan and chassis Fan headers

Form Factor:
* ATX (305mm*220mm)

For more info click HERE

Also included:

Manual, Utilities CD, I/O faceplate.
