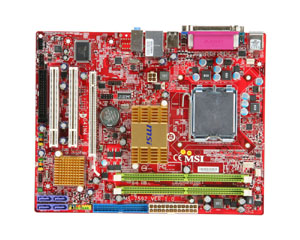

MSI G41M4 MS-7592
MSI G41M4 Socket 775 Intel G41 Micro ATX Intel Motherboard
SPECIFICATIONS:
Socket |
775 |
Chipset Type |
Intel G41 /ICH7 |
Compatible Processors |
. Supports Intel® Core 2 Quad/Core 2 Duo based processors in LGA775 package.
. Supports Intel® Yorkfield, Wolfdale in the LGA775 package.
. Supports Intel® next generation 45nm multi-core processors
. Supports FSB 1333/1066/800 MHz.
. Supports VRD 11.1 standard.
. Supports FMB 05a@95W |
Bus Speed |
1333/1066/800 MHz |
Storage |
1 x ATA100 2 Dev. Max
4 xSATA 3 Gb/s ports |
VGA |
Intel GMA X4500 |
Memory |
2 x240-pin DIMM
DDR2 667/800
Dual Channel memory architecture |
Internal I/O Connectors
|
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU x1/ System x2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 2 x USB 2.0 connectors
- 1 x Floppy disk drive connector
- 4 x Serial ATAII connectors
- 1 x ATA100 connector
- 1 x SPDIF-Out connector
- Clear CMOS Jumper
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x TPM module connector |
Audio |
Realtek ALC888S
8 Channels |
Networking |
Realtek 8103EL |
Expansion Slots |
1 x PCIe x16
2 x PCI |
Rear Panel Ports |
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x Parallel port
- 1 x Serial port (COM 1)
- 1 x Graphics Card port
- 1 x 3 in 1 audio jack
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack
|
USB |
4 USB 2.0/1.1 ports |
Form factor |
24.4cm(L) x 19.3cm(W) mATX Form Factor |
Package Includes: Micro ATX Motherboard, SATA cable, IDE cable, I/O Shield, Drivers CD and Manual.
|
|
