MSI G31M3-F V2 MS-7529 Ver. 1.1

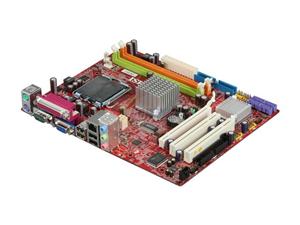

The MSI G31M3-F V2 MS-7529 ver. 1.1 Socket 775 Intel G31 Micro ATX Intel Motherboard.
SPECIFICATIONS:
Socket |
775 |
Chipset Type |
Intel G31 / Intel ICH7 |
Compatible Processors |
Core 2 Quad/Duo / Pentium Dual-Core / Celeron |
Bus Speed |
800/1066/1333MHz |
Storage |
PATA:
1 x ATA100 2 Dev. Max
SATA 3Gb/s: 4 |
Memory |
Number of Memory Slots: 2 x 240pin Memory Standard:
DDR2 667/800
Maximum Memory Supported: 4GB Channel Supported: Dual Channel |
Graphics Controller |
Intel GMA 3100 |
Audio |
Realtek ALC888, 8 channels |
Networking |
Realtek 8111C,
10/100/1000Mbps |
Expansion Slots |
PCI Express x16: 1
PCI Slots: 2 |
Rear Panel Ports |
PS/2: 2
Video Ports: D-Sub
LPT: 1
USB 1.1/2.0: 4 x USB 2.0
COM: 1
Audio Ports: 3 Ports |
Onboard USB |
2 x USB 2.0 |
Form factor |
Micro ATX |
Package Includes:
Micro ATX Motherboard, SATA cable, IDE cable, I/O Shield, Drivers CD and Quick Installation Guide..
|
|
