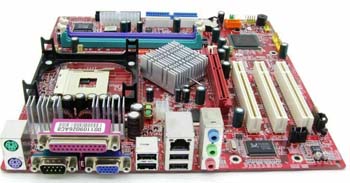

MSI 865GVM2-LS MS-7037 V. 1
MSI 865GVM2-LS MS-7037 Socket 478 Intel 865GM Micro ATX Intel Motherboard.SPECIFICATIONS:
| Socket | 478 |
| Chipset Type | Intel 865GM/ICH5 |
| Compatible Processors | Pentium 4 Extreme Edition / Pentium 4 (Northwood & Prescott)/Celeron D (Prescott)/ Celeron (Northwood)/ |
| Bus Speed | 800/533/400 MHz |
| Storage | PATA:
2 x ATA100/66 SATA 1.5Gb/s: 2 |
| Memory | Memory Standard:
DDR 400/333/266 MHz SDRAM Maximum Memory Supported: 2GB Channel Supported: Dual Channel |
| Graphics Controller | Integrated Intel Extreme Graphics 2 |
| Audio | Realtek ALC655 AC'97 5.1-channel |
| Networking | Realtek RTL8100C 10/100 Fast Ethernet LAN |
| Expansion Slots | PCI Slots: 3 |
| Rear Panel Ports | PS/2: 2 Video Ports: 1 VGA LPT: 1 USB 1.1/2.0: 4 x USB 2.0 COM: 1 RJ-45 Ethernet port: 1 Audio Ports: 3 Ports |
| Onboard USB | 2 x USB 2.0 |
| Form factor | Micro ATX |
New, Replacement Part, Bare Motherboard, No Accessories Included.
