| Socket |
AM2 |
| Chipset Type |
NVIDIA nForce 520 single chip |
| Compatible Processors |
- Supports Socket AM2 Processor with 2GHz system bus using Hyper TransportT Technology
- Supports AMD CPU Cool 'n' Quiet Technology
|
| Storage | ATA, Serial ATA |
| RAM |
- 4 X 240-pin DIMM sockets support max. memory capacity 8GB
- Supports Dual Channel DDR2 800 Un-buffered ECC/ Non-ECC memory
|
| Serial ATA |
- 4 x SATA (RAID) 3Gb/s
- Supports SATA RAID 0/1/0+1
|
| Graphics |
PCI-E Expansion slot |
| Audio |
- On board 7.1 CH HD Audio CODEC
- Auto Jack Sensing, Jack Re-tasking functions
|
| Networking |
nVidia Gigabit LAN |
| Expansion Slots |
1 x PCI-E X16, 2 x PCI-E X1, 3 x PCI |
| Storage Interfaces |
Intel ICH7 : ATA-100 - connector(s): 1 x 40pin IDC - 2 device(s) , Intel ICH7 : Serial ATA-300 - connector(s): 4 x 7pin Serial ATA - 4 device(s) |
| Internal I/O |
- 1 x Floppy Port supports up to 2.88MB
- 1 x Ultra DMA 133/100/66/33 IDE Connector
- 3 x USB2.0 header (support 6 ports)
- 4 x SATA 3Gb/s connector
|
| Back Panel I/O |
- 1 x PS/2 Keyboard, 1 x PS/2 Mouse
- 7.1 CH HD Audio connector (Front, Line-in, MIC-in, Center/Subwoofer, Surround, Rear Surround)
- 4 x USB 2.0, 1 x RJ-45 LAN Connector
|
| Form factor |
ATX form factor 305 x 245mm |
| Package Includes |

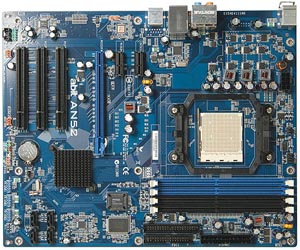

- AN52 Motherboard
- SATA cable
- IDE cable, Floppy cable
- I/O Shield
|
